The 360° Coverage Myth: Why Wide-Angle Security Cameras Detect Less Than You Think

Table of Contents

1. Introduction
2. The Security Industry’s 360° Coverage Obsession
3. Why Wide-Angle Cameras Struggle at Night
4. Comparing Real AI Detection Coverage
5. 360° Fisheye Cameras
6. 180° Panoramic Cameras
7. 90° Standard Cameras
8. Why Jatagan’s Custom-made AI Camera Strategy Is Different
9. Real-World Coverage Comparison Table
10. Best Security Camera Strategy for Large Outdoor Sites
11. Final Thoughts
12. FAQs

1. Introduction

The security industry loves marketing terms like:

• “360-degree coverage”
• “Panoramic visibility”
• “Eliminate blind spots”

At first glance, these claims sound impressive. If a camera can see in every direction, shouldn’t it provide better security?

Not necessarily.

One of the biggest misconceptions in modern surveillance is the belief that wider camera coverage automatically results in better protection.

The truth is:

Seeing more area does not mean detecting humans more effectively.

When it comes to real-world AI security performance — especially in pitch-black nighttime environments — wider viewing angles often create the opposite effect:

• Reduced AI detection distance
• Lower pixel density
• Weaker infrared illumination
• Less reliable human detection

This means many 360° and panoramic cameras visually cover large areas while providing surprisingly small usable AI detection zones.

In this article, we compare the real-world nighttime AI human detection performance of:

• 360° fisheye cameras
• 180° panoramic cameras
• Standard 90° bullet/turret/dome cameras
• Jatagan’s custom-made AI camera deployment strategy

The results reveal why the industry’s obsession with “360° coverage” can be misleading.

2. The Security Industry’s 360° Coverage Obsession

Wide-angle security cameras are heavily marketed because they appear efficient:

• One camera sees more directions
• Fewer cameras may be needed
• Installations look cleaner
• Coverage maps appear larger

But these marketing claims focus on visibility, not detection reliability.

Security is not about simply displaying pixels on a screen.

Real security depends on:

• Reliable AI human detection
• Accurate target classification
• Strong nighttime performance
• Actionable alerts
• Effective perimeter protection

This is where ultra-wide cameras begin to fail.

As viewing angles increase:

• Pixels become spread across larger areas
• Objects appear smaller at distance
• IR illumination weakens
• Edge distortion increases
• AI confidence drops significantly

The result:

Wider viewing angles often produce smaller reliable AI detection areas.

3. Why Wide-Angle Cameras Struggle at Night

During daylight, many cameras perform adequately because ambient light helps compensate for image limitations.

But in complete darkness, the camera must rely heavily on:

• Built-in IR illumination
• Sensor sensitivity
• Pixel concentration
• AI processing quality

Wide-angle cameras introduce major limitations in all four areas.

I. IR Illumination Gets Spread Too Thin

Infrared light has limited power.

When a camera attempts to illuminate a 360° field of view, the IR light becomes dispersed across a massive area.

This dramatically reduces usable nighttime detection distance.

II. Lower Pixel Density Reduces AI Accuracy

AI human detection requires enough pixel detail to classify a target reliably.

Wide-angle cameras distribute available pixels across broader scenes, meaning:

• Distant humans have less pixels on target
• Fine detail is lost
• AI confidence decreases

This reduces reliable human detection range.

III. Fisheye Distortion Impacts Detection

360° fisheye cameras create significant image distortion near the edges.

This distortion can negatively affect:

• AI target recognition
• Motion analysis
• Human classification reliability

IV. “Visible” Does Not Mean “Protected”

A person may technically appear somewhere within a wide-angle image.

But if the AI cannot reliably identify that person as human, the security system becomes far less effective.

This creates a dangerous false sense of protection.

4. Comparing Real AI Detection Coverage

To compare real-world performance, we analyzed the approximate reliable AI human detection ranges of several common camera types operating in pitch-black environments using built-in IR illumination.

Instead of measuring advertised viewing angle, we measured:

Reliable nighttime AI human detection area

Using the midpoint of each reliable detection range, we calculated coverage area using:

A = π r²

5. 360° Fisheye Cameras

360° fisheye cameras are designed to maximize viewing angle from a single mounting location.

Marketed Benefit

• “See everything with one camera”

Real-World Limitation

In pitch-black conditions using built-in IR:

• Reliable AI human detection range is typically only about 20–25 feet

Using the midpoint of 22.5 feet:

Coverage area using one 360° fisheye camera:

A = π (22.5)² = 1,590 sq ft

Key Problem

Although the camera visually displays a large surrounding area, the reliable AI detection zone is relatively small.

6. 180° Panoramic Cameras

180° panoramic cameras improve performance somewhat by concentrating pixels more effectively than fisheye cameras.

Reliable AI Detection Range

• Approximately 30–40 feet
• Midpoint used: 35 feet

Coverage area using two 180° panoramic cameras:

A = π (35)² = 3,848 sq ft

Reality Check

180° cameras provide better performance than 360° fisheye cameras, but their effective nighttime AI detection area remains limited for large outdoor properties.

7. 90° Standard Cameras

Traditional bullet, turret, and dome cameras typically use narrower 90° viewing angles.

Reliable AI Detection Range

• Approximately 50–80 feet
• Midpoint used: 65 feet

Coverage area using four 90° standard cameras:

A = π (65)² = 13,273 sq ft

Why They Perform Better

Narrower viewing angles:

• Increase pixel density
• Improve IR illumination concentration
• Enhance AI recognition accuracy
• Improve nighttime detection reliability

This is why standard directional cameras still outperform many wide-angle cameras in security applications.

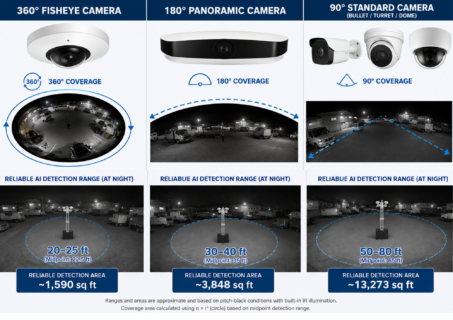

[Reliable AI human detection area of 360^o fisheye, 180^o panoramic, and 90^o standard cameras]

8. Why Jatagan’s Custom-Made AI Camera Strategy Is Different

Jatagan approaches security differently.

Instead of relying on ultra-wide “see everything” cameras, Jatagan uses:

• Our own custom-made, specialty AI cameras
• Strategic opposing-corner deployment
• Optimized overlapping detection zones
• Focused IR illumination
• AI-driven perimeter protection

This creates dramatically larger usable detection coverage.

Using four strategically placed custom-made AI cameras for full perimeter protection, Jatagan achieves:

• Reliable AI human detection up to approximately 350 feet with one camera on the entire perimeter
• Approximately 122,500 square feet of effective monitored area

Coverage area using four Jatagan custom-made AI cameras:

350 × 350 = 122,500 sq ft

The reliable AI human detection area using four Jatagan custom-made AI cameras is almost 10 times that of four 90° standard cameras.

Unlike many traditional deployments, Jatagan prioritizes:

• Reliable AI performance
• Real intrusion detection
• Nighttime effectiveness
• Actionable security intelligence

Not simply wider viewing angles.

[Reliable AI human detection area of Jatagan’s custom-made specialty AI cameras]

9. Real-World Nighttime AI Detection Comparison

Approximate Reliable AI Detection Coverage

10. Best Security Camera Strategy for Large Outdoor Sites

For large outdoor environments such as:

• Construction sites
• Industrial yards
• Critical infrastructure
• Utility facilities
• Fleet vehicles yard and dealerships
• Cannabis and agricultural farms
• Mining sites

Wide-angle cameras alone are rarely the best solution.

The most effective approach combines:

• Strategic camera positioning
• Reliable AI detection
• Focused IR illumination
• Overlapping detection zones
• Specialty AI cameras optimized for perimeter protection

This is the philosophy behind Jatagan’s deployment strategy.

11. Final Thoughts

The security industry often promotes wider viewing angles as the ultimate solution.

But real-world AI security performance tells a different story.

A 360° security camera may visually cover more space, but wider viewing angles reduce pixel density and infrared illumination strength, resulting in significantly smaller reliable nighttime AI human detection areas compared to strategically deployed specialty AI cameras.

The real purpose of a security system is not simply to “see more.” It is to:

• Detect humans reliably
• Identify threats accurately
• Reduce false alarms
• Protect large outdoor environments effectively

That is why Jatagan focuses on strategic custom-made, specialty AI camera deployments rather than relying on ultra-wide coverage marketing claims.

Because when it comes to real security performance:

Reliable AI detection matters far more than advertised viewing angle. That’s why Jatagan consistently achieves a crime prevention success rate of over 99.9%.

12. FAQs

Are 360° security cameras bad?

Not necessarily. They can be useful for general situational awareness and indoor monitoring. However, they are often less effective for long-range outdoor nighttime AI human detection.

Why do wider cameras detect less effectively?

Because pixels and IR illumination become spread across a larger field of view, reducing image detail and AI accuracy at distance.

What matters more than field of view?

Reliable AI human detection range, nighttime performance, and effective monitored area are far more important than advertised viewing angle alone.

Why does Jatagan use opposing-corner camera placement?

Opposing-corner deployment maximizes effective perimeter coverage and total coverage area.

Does wider coverage reduce image quality?

In many cases, yes. Wider angles reduce pixel density and can introduce distortion, especially in fisheye cameras.

What industries benefit most from Jatagan’s approach?

Industries with large outdoor areas benefit significantly, including:

• Construction sites
• Industrial yards
• Critical infrastructure
• Utility facilities
• Fleet vehicles yard and dealerships
• Cannabis and agricultural farms
• Mining sites
